AUDI A4 Avant Wiring Diagrams

A4 AVANT Battery, Ignition Switch and Starter Wiring Diagram

T10d - plug connector, 10-pin, gray, connecting station, A-pillar on the left; T17d - plug connector, 17-pin, red, connecting station, at radiator tank; 11 - mass point, in the battery box; 26 - mass point; 500 - connection "1" (30), on the relay board; 501 - connection "2" (30), on the relay board; A2 - connection with the "plus" (15), in the dashboard wire harness; A32 - connection with the "plus" (30), in the dashboard wire harness

A4 AVANT Electrical Adjustment of the Driver’s Seat, without Memory Function Schematics

T8h - plug connector, 8-pin, at the driver's seat; T10o - plug-in connector, 10-pin, red, connecting the wires of the driver's seat; 95 - connection with mass "1", in a plait of wires of system of regulation of seats; 277 - connection with the mass "3", in the wiring harness of the cabin; 501 - connection “2” (30), on the relay board; A98 - connection with plus 4 (30), in the dashboard wiring harness; M1 - connection with plus 1 (30), in the wiring harness of the seat adjustment system

A4 AVANT Electrically Adjustable Rear Driver's Seat Circuit Diagram

T8h - plug connector, 8-pin, at the driver's seat; 95 - connection with the "mass" 1 ", in the wiring harness seat adjustment; M1 - connection with the" plus "1" (30), in the wiring harness seat adjustment

A4 AVANT Starter and Reversing Relays Wiring Diagram

T1 - plug connector, 1-pin, black, in the engine compartment on the right; T10a - plug connector, 10-pin, brown, connecting station, at radiator tank; T17d - plug connector, 17-pin, red, connecting station, at radiator tank; T17e - plug connector, 17-pin, white, connecting station, at radiator tank; 12 - the point of mass, in the engine compartment on the left; 85 - connection with mass "1", in a plait of wires of a motor compartment; 501 - connection ”2’ (30), on the relay board; A2 - connection with the "plus" (15), in the wire harness of the dashboard; A32 - connection with the "plus” (30), in the wire harness of the dashboard; A70 - connection (15a, fuse 213). in the dashboard wire harness; A87 - Connection (RF, right-hand signal reverse), in the dashboard wire harness; D51 - connection to the "plus" 1 "(15), in the wiring harness of the engine compartment

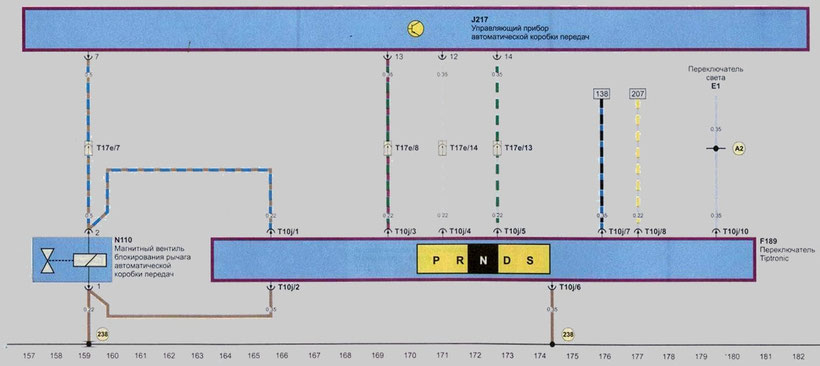

A4 AVANT Automatic Transmission Control Device, Tiptronic Switch Schematic

T10j - plug-in connector, 10-pin, black, on the Tiptronic switch; T17e - plug connector, 17-pin, white connecting station, at the radiator tank; 238 - connection with a mass of "1", in the wiring harness of the cabin; A3i - connection to the "plus" (58), in the dashboard wire harness
