RENAULT MAGNUM Truck Wiring Diagrams

MAGNUM Power, Start Wiring Diagram

MAGNUM Power, Start Wiring Diagram

2111 - Battery

2121 - Power relay after contact

2165 - Common switch

2211 - Starter

2212 - Starting relay

2261 - Anti-theft device and electric start

8216 - oil pressure warning lamp

8227 - Oil Pressure Switch

8267 - Oil Pressure Gauge Switch

8466 - Transmission neutral position contact


MAGNUM Power, Start, Preliminary Heating Schematics

MAGNUM Power, Start, Preliminary Heating Schematics

2121 - Power relay after contact

2200 - Electronic unit with anti-theft device

2219 - Antenna Responder

2220 - Responder Key

2221 - Warning light "Information" electronic anti-theft device

2261 - Anti-theft device and electric start

2311 - Generator

2314 - Battery charging indicator lamp

2411 - Preheating Resistors

2414 - Preheating relay

2418 - Preheat Control Lamp

2461 - engine preheating switch

7111 - Tachometer

9205 - Computing Device "VMAC"


MAGNUM Back-up Power, Sockets of Trailers Circuit Diagram

MAGNUM Back-up Power, Sockets of Trailers Circuit Diagram

1121 - Reserve

1125 - Electrical unit on the chassis

1220 - Upper Extendable Cab Ass

1229 - chassis-cockpit junction block

1621 - Mass

2113 - 7-pin trailer receptacle THna "24N“

2114 - 7-pin trailer receptacle type "24R"

2115 - Trailer receptacle 7-pin type “24S"

2116 - 7-pin trailer receptacle (for the “ABS” system)

2122 - Trailer Power + 24 V

2141 - Backup power (for lighting)

2142 - Backup power (after contact of the starter key)

2146 - Backup power (mass)

2147 - Backup power (after the general switch)

2157 - Backup power (for video)

2158 - Backup power turnips

3313 - Trailer turn indicators lights

3314 - Indicator lights for trailer left turn

3515 - Fog Light Trailer

3522 - Stop Signal Trailer

3523 - Trailer Stop Light (exhaust retarder)

3634 - Trailer Overall Lights

3727 - Right parking light lantern

3728 - Left trailer parking light

5511 - Highlighting valves

6326 - Trailer reversing light

7524 - Socket "SAE"

8013 - Trailer ABS Warning Lamp


MAGNUM Lighting Wiring Diagram

MAGNUM Lighting Wiring Diagram

3511 - Fog light (or lanterns)

3513 - Fog lamp relay (or lanterns

3515 - Fog Light Trailer

3517 - Indicator lamp fog lamp (or lamps)

3611 - Overall Front-right Lantern

3612 - Front left side lamp

3613 - Parking light, front right

3614 - Left front parking light

3618 - Releasing lights

3634 - Trailer Lights

3662 - Lighting Relay

3714 - Rear left side clearance

3715 - Rear right side lamp

3716 - Overall left center lamp

3717 - Dimensional lamp center right

3725 - Right rear parking light

3726 - Left rear parking light

3727 - Right parking light lantern

3728 - Left trailer parking light

6111 - Dipped beam headlamp right

6112 - Headlight dipped left

6113 - Right headlamp high beam

6114 - High-beam headlamp, left

6119 - Repe dipped headlights





6121 - High Beam Relay

6123 - Test light for high beam headlights

6130 - Lighting Switch

A - marker lights (sidelights)

B - dipped headlights

C - far sow headlights

About - light signaling device

E - Beeper

F - direction indicator

G - fog lights

H - fog lamp

6132 - Headlamp low beam warning lamp

6211 - Left Fog Light

6212 - Fog Light

6214 - Fog light relay

6215 - High Beam Relay

6216 - Indicator light for high beam headlights

6218 - Indicator lamp fog lights

6221 - High Beam Spotlight Right

6222 - High Beam Projector Left

6223 - Shunt (without high beam spotlights)

6261 - High Beam Switch

6527 - Illumination switches

6534 - Illumination devices Panvpi


MAGNUM Turn Lights Circuit Diagram

MAGNUM Turn Lights Circuit Diagram

1229 - chassis-cockpit junction block

3101 - Indicator switch block

3117 - Flashing control lamp "truck" or "tractor"

3118 - Flashing control trailer

3119 - Alarm Warning Lamp

3161 - Alarm Control Button

3211 - Front right turn indicator

3212 - Front left turn indicator

3213 - Right side turn indicator

3214 - Left side turn indicator

3311 - Rear right turn indicator

3312 - Rear left turn indicator

3313 - Trailer turn indicators lights

3314 - Trailer turn indicators lights

3410 - Electrovalve siren on the roof

3411 - Beep

3512 - Brake light relay

3520 - Stop Signal



3521 - Right brake light

3522 - Stop Signal Trailer

6130 - Lighting Switch

A - marker lights (sidelights)

B - bpizhny headlights

C - far sow headlights

D - light signaling device

E - Beeper

F - direction indicator

G - fog lights

H - fog lamp

6140 - fluorescent lights

6321 - Reversing light, right

6322 - Reversing light left

6326 - Trailer reversing light

8160 - Brake light switch

8472 - Reversing light switch

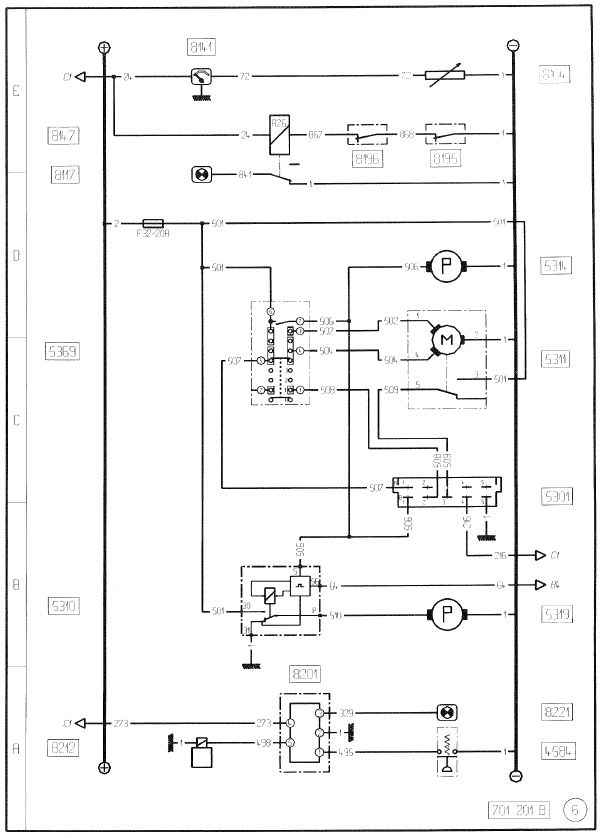

MAGNUM Wipers and Headlights, Centralized Lubricant System Schematic

MAGNUM Wipers and Headlights, Centralized Lubricant System Schematic

4584 - Pressure sensor in the central lubrication system

5301 - Clock diagram wiper

5310 - Headlight washer control circuit timer

5311 - Wiper motor (wiper)

5314 - Washer pump (windscreen washer)

5319 - Headlight washer pump

5369 - Wiper / washer / headlight washer switch

8104 - Front air pressure sensor

8117 - Brake Shoe Warning Light

8141 - Front air pressure indicator

8147 - Friction lining wear signal relay

8195 - Left brake pads wear signal switch

8196 - Brake Lining Brake Warning Switch

8201 - Time Relay Centralized Lubrication System

8212 - Electroclanan centralized lubrication

8221 - Central lubrication warning lamp
