DAEWOO ESPERO Wiring Diagrams
DAEWOO ESPERO Wiring Diagrams are below the page.
F1 - F18 Fluorescent Ovens - Passage Salon
F19 - F24 Fluorescent Feed - Depth Driving
G1 Battery
G2 Generator with periodic buckle
E1 Background
M1 Starter
Y24 Private switch - dispenser
S1 Ignition
Х1 Alloy (3 plates) both transverse slit and slit I TBI
Х2 Alloy (8 screws)
Х2А Alloy(14 stitches) double stitch: double and double doors (left)
H2V Alloy (14 stitches) double stitch: double and double doors (straight)
Х4 Alloy (18 stitches) double glued fittings Zitka and TBI
Х4А Alloy (6 plates) double glued pliers Zitka and TBI
Х5 Alloy (8 screws) double screwdriver Clamp and drive
Х6 Alloy (16 stitches) double braided: Pruning sheath and zipper
Х6А Alloy (4 plates) double bush: Fittings
Х6В Alloy (3 shafts) with a double zigzag and an opening with a thick fittings
Х7 Alloy (18 stitches) double glazed: fittings
Х7А Alloy (9 screws) double bolt: fittings
Y32 Injector valve - TBI
Y30 Engine indicator
Y35 Upward shift indicator
M33 IAC
P14 Speed sensor - vehicle speed
P23 Vacuum sensor - intake pipe
P29 Temperature sensor - intake pipe temperature
P30 Temperature sensor - coolant
P34 Throttle valve position sensor
K57 Control unit - TBI
X22 Diagnostic line connector (ALDL)
M21 Fuel pump
K58 Fuel pump relay
S91 Oil pressure switch - TBI
P7 Tachometer
F25 Voltage Regulator
K95 Timer relay - rear window heater
V1 Diode
E11 Instrument panel light
E19 Heater rear window
E34 - 36 Heater control lamp
Y4 Engine oil pressure warning light
Y5 Brake lamp
Y7 Alternator Alarm Lamp
Y33 Indicator lamp for rear window heater
P1 Fuel sensor
P2 Temperature sensor
P4 Fuel sensor - fuel tank
P5 Temperature sensor - coolant
U10 Lighting control unit
S99 Lighting control switch
S4 Rear Window Heater Switch
S11 Brake fluid switch
S13 Parking brake switch
E13 Lamp of the main interior
H4 Turn signal indicator (left)
H5 Turn signal indicator (right)
H6 Alarm flashing indicator
N9 Stoplight (left)
N10 Stoplight (right)
H12 Turn signal lamp (rear left)
H14 Turn signal lamp (rear right)
H27 Horn
H28 Seat belt alarm transmission device
Y36 Top stop light
S5.3 Turn signal lamp switch
S8 Stop lamp switch (M / T)
S15 The main interior lamp switch
S17 Door switch (front right)
S47 Door switch (front left)
S52 Flashing alarm switch
S89 Seat belt switch

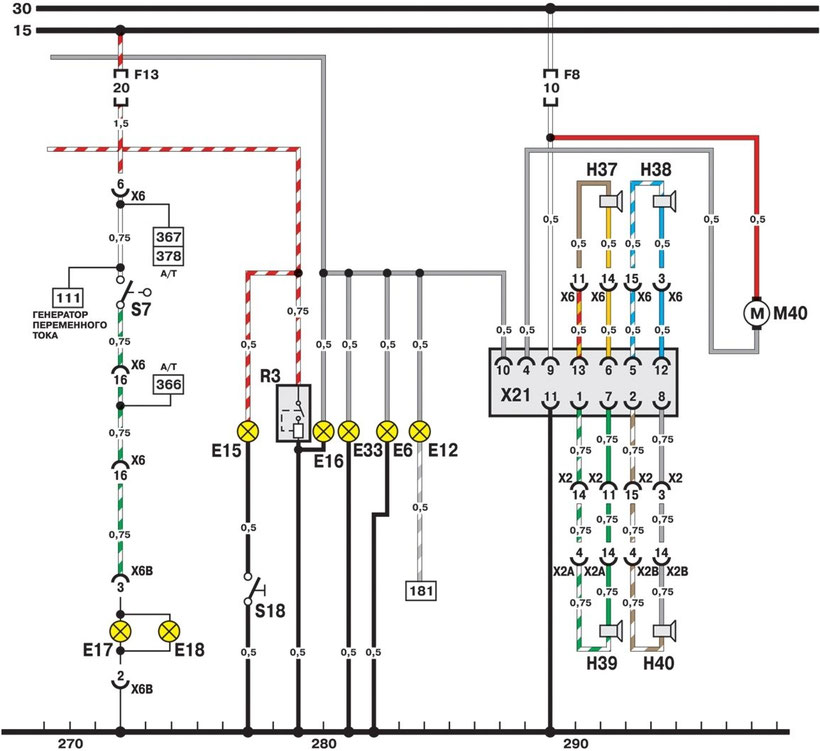

R10 Interior lamp
E6 Engine compartment lamp
E12 Selector lever lamp (A / T)
E15 Glove box lamp
E16 Lighter lamp
E17 Reverse lamp - left
E18 Reverse lamp - right
E33 Ashtray lamp
H37 Loudspeaker - rear left
H38 Loudspeaker - rear right
H39 Loudspeaker - front door, left
H40 Loudspeaker - front door, right
M40 Auto Antenna
R3 Lighter
S7 Reverse lamp switch (M / T)
S8 G love box switch
X21 Radio Connector (13 pins)
K8 Wiper time relay
M2 Wiper Motor
M5 Motor washing device
R20 Wiper Time Control Switch
E40 Wiper control light bulb
S9.2 Wiper Switch
